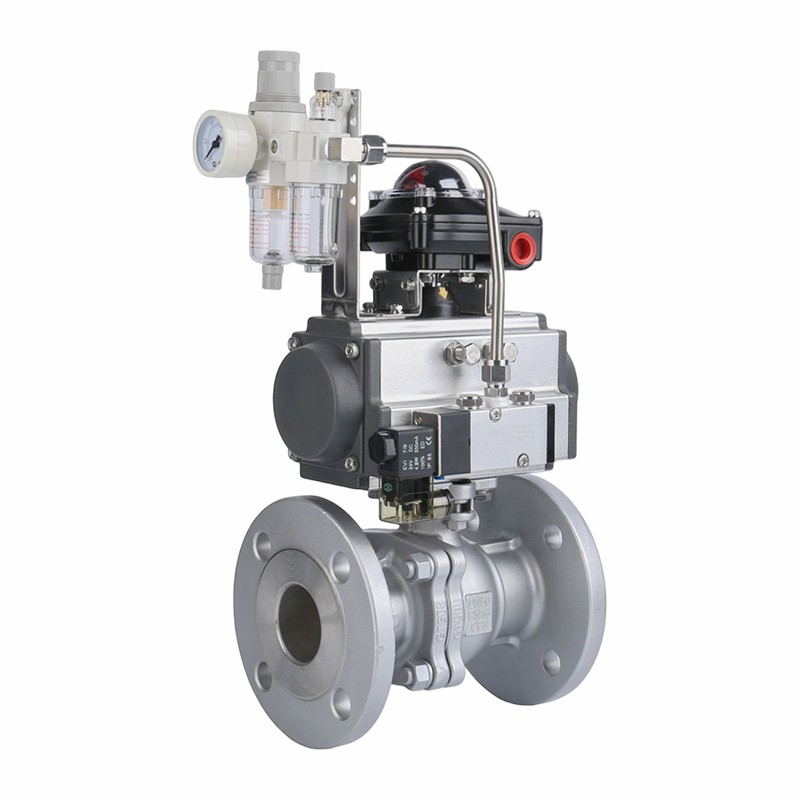

Stainless Steel Flanged Pneumatic Ball Valve

Stainless steel flanged pneumatic ball valve are key components in modern fluid control systems, utilizing compressed air to rotate the ball via a valve stem, enabling rapid and precise opening and closing. Known for their fast response and reliable operation, pneumatic ball valves are widely used in industries such as oil and gas, chemical processing, water treatment, power generation, and food and pharmaceuticals. They effectively control the flow of water, steam, oil, and corrosive media, making them indispensable valve solutions for automated production lines. With their integrated design, pneumatic ball valves significantly reduce installation complexity and can be used with various pneumatic actuators, seamlessly supporting centralized control in industrial automation, thereby improving operational efficiency and reducing manual intervention costs.

The stainless steel flanged pneumatic ball valve body of the pneumatic ball valve is made of high-quality cast steel and stainless steel, with our stainless steel products using 304 and 316L materials. Precision casting and CNC machining ensure a smooth, burr-free interior, minimizing fluid resistance and media corrosion.

The valve seat uses high-performance sealing materials such as PTFE and PPL, while the hardened stainless steel ball guarantees stable sealing performance. Each pneumatic ball valve is manufactured in strict accordance with international standards such as ISO 5211 and API 6D, and undergoes rigorous sealing performance tests, pressure tests, and operational performance tests.

We guarantee zero leakage for soft seals and leakage controlled to ≤0.1×DN mm³/min for hard seals. The sealing test guarantees 1.1 times the pressure bidirectional pressure holding for 15 minutes, with a leakage rate ≤ ANSI Class V. In the airtightness test, our products can guarantee 1.15 times the working pressure holding for 30 minutes, with an annual leakage rate ≤ 0.5%. Bubble-level detection ensures no visible bubbles, guaranteeing durability and stable performance even under high pressure, high temperature, and highly corrosive conditions, with a service life exceeding the industry average.

Pneumatic ball valves offer a response time of ≤0.5 seconds, providing precise 0-90° angular travel control and excellent linear flow characteristics. Built-in fireproof and anti-static designs effectively eliminate static electricity and prevent flame spread, thereby improving system safety. The actuator includes a spring return mechanism that automatically resets the valve to a safe position in the event of power or air supply failure, reducing the risk of malfunction. Furthermore, the modular design of the pneumatic ball valve allows for easy disassembly and replacement of wear parts using common tools, significantly reducing maintenance time and costs, and supporting the continuous and stable operation of industrial production.
