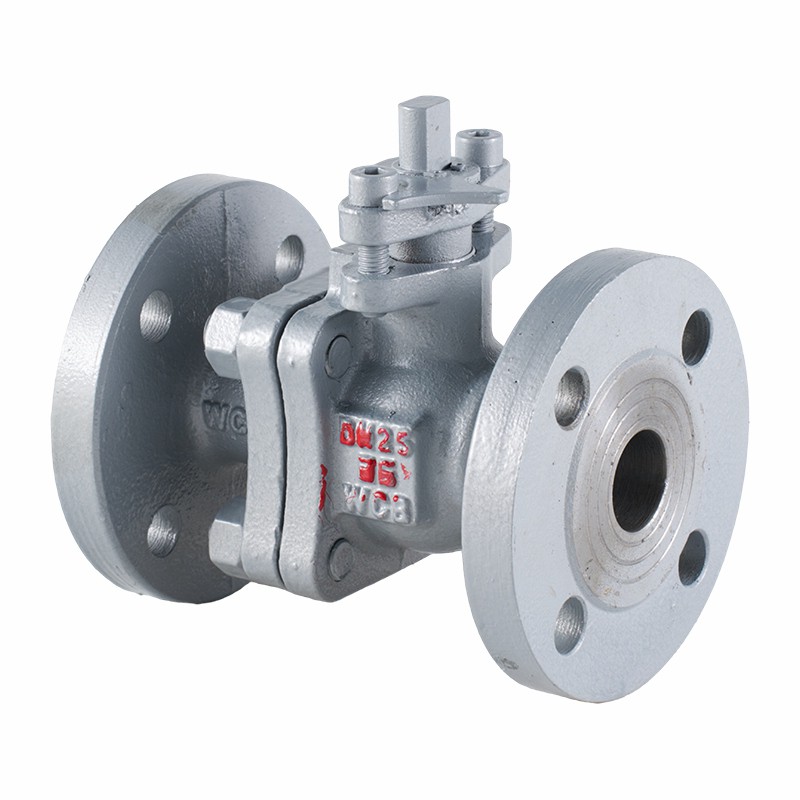

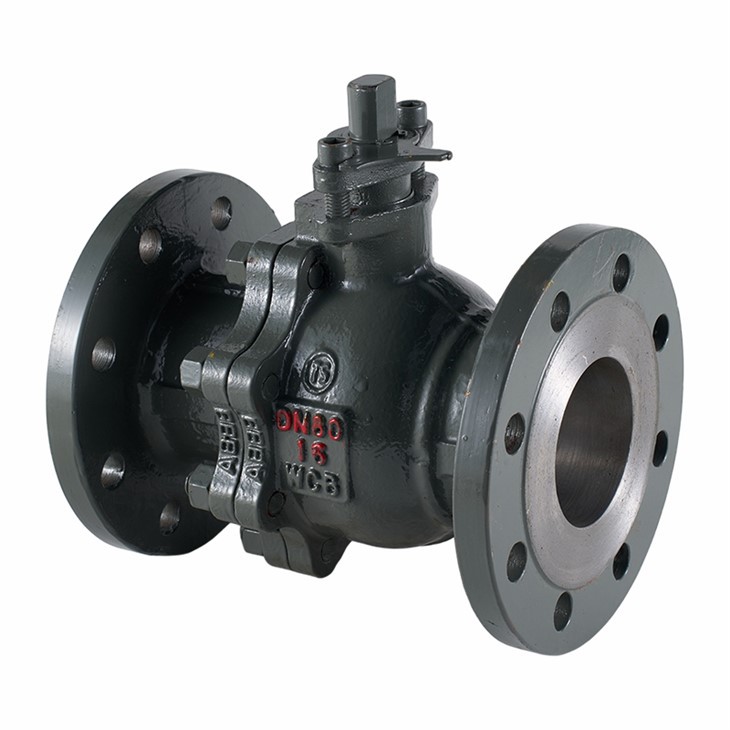

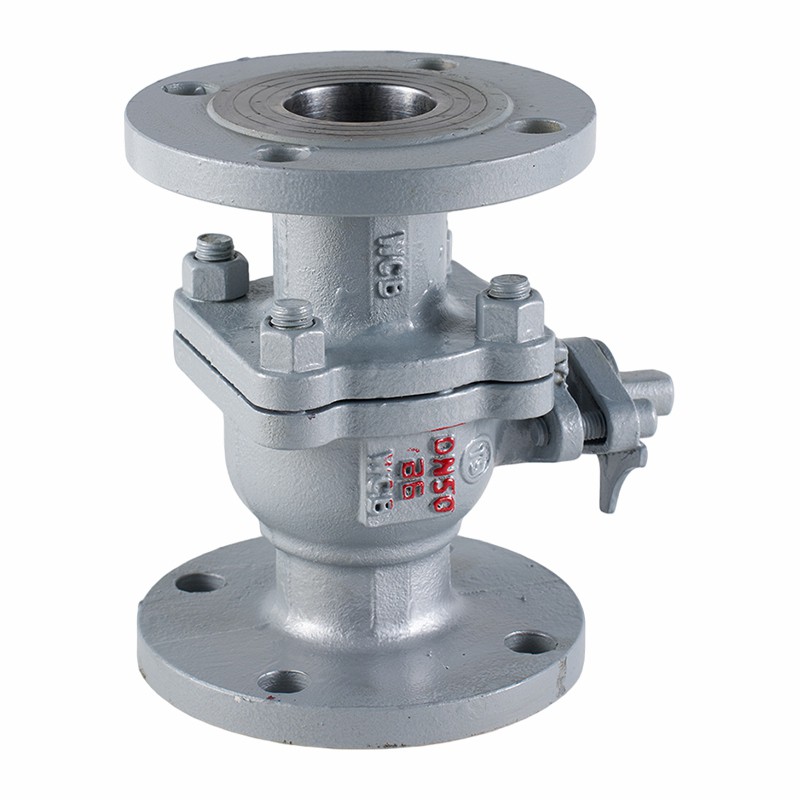

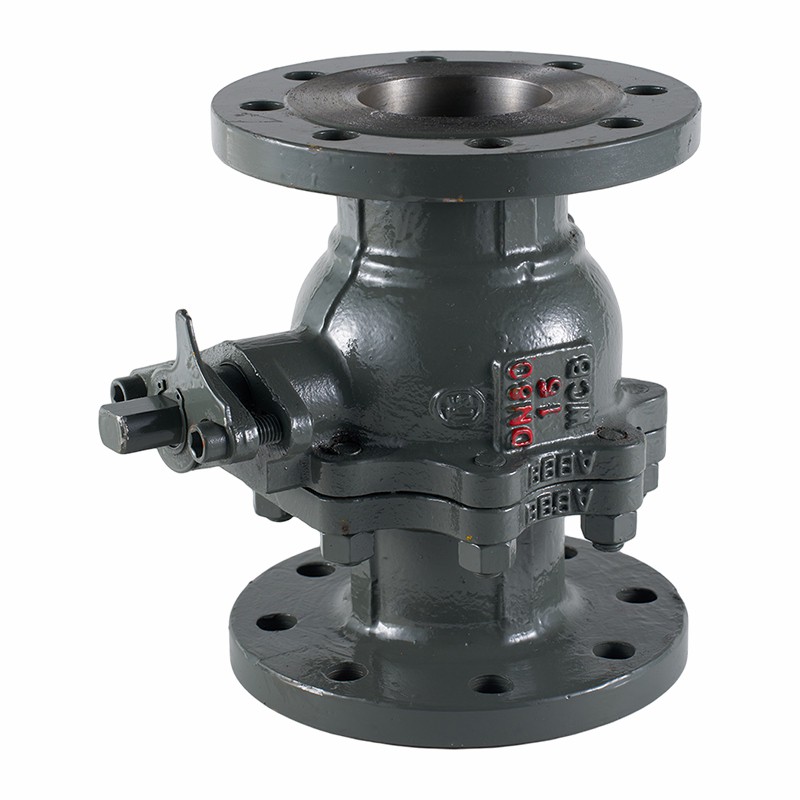

Product Introduction

Built for Extreme Pressure & Temperature

The cast steel ball valve is a heavy-duty solution engineered to perform in the most severe industrial environments. Its valve body, manufactured from premium carbon steel or alloy cast steel (WCB, WC6, WC9), offers exceptional strength, toughness, and resistance to high pressure and high temperature. Designed for petrochemical plants, metallurgy, power generation, and boiler steam systems, this product reliably handles hot steam, thermal oil, crude oil, and aggressive acid and alkali media. It serves as a critical component for ensuring safety and operational stability in harsh fluid control applications.

Precision Engineering for Maximum Durability

Every cast steel ball valve undergoes precision casting and annealing to eliminate internal stresses, enhancing structural integrity under thermal and pressure cycling conditions. The ball is forged from stainless steel, hardened, and finely polished for superior wear and erosion resistance. Combined with high-performance seat materials, the valve achieves bubble-tight sealing performance.

Manufacturing strictly adheres to API 608 and GB/T 12224 standards. Each valve is subjected to non-destructive testing, high-pressure and high-temperature cycling, and seat leakage testing, ensuring consistent quality from raw material selection to finished product.

Easy Maintenance & Broad Compatibility

This cast steel ball valve offers excellent adaptability, withstanding temperatures up to 600 °C and pressures up to 42 MPa. Its zero-leakage design helps prevent media loss and potential safety hazards. The compact, space-saving structure features flanged connections for easy integration into existing pipeline systems.

A top-entry design allows for inline maintenance, enabling seat and seal replacement without removing the valve from the pipeline, significantly reducing downtime and maintenance costs. With standardized wear parts and proven long-term stability, the cast steel ball valve is an optimal choice for demanding shut-off applications.

Parameter	Specification
Body Material	WCB, WC6, WC9, LCB
Pressure Class	Up to Class 2500 (42MPa)
Temperature Range	-46°C to 600°C
Valve Size Range	DN15 – DN600
Connection Type	Flanged, Butt-Weld
Seat Material	PTFE, RPTFE, Metal
Ball Material	Stainless Steel (Hardened)
Design Standard	ASME16.24,GB/T12237
Fire Safe Option	API 607 Certified Available

American Standard Ball Valve (Q41F-150LB) - Main Connection Dimensions Table

Model	Nominal Diameter		Dimensions (mm)
Type	In	mm	L	D	D1	D2	H	b	Z-Φd	D0
Q41F-150LB	1/2"	DN15	108	89	60	35	68	12	4-Φ15	115
	3/4"	DN20	117	98	70	43	75	12	4-Φ15	130
	1"	DN25	127	108	80	51	85	12	4-Φ15	150
	1-1/4"	DN32	140	117	89	64	96	13	4-Φ15	190
	1-1/2"	DN40	165	127	98.5	73	107	15	4-Φ15	230
	2"	DN50	178	152	120.5	92	118	16	4-Φ19	240
	2-1/2"	DN65	190	178	139.5	105	145	18	4-Φ19	280
	3"	DN80	203	190	152.5	127	160	19	4-Φ19	310
	4"	DN100	229	229	190.5	157	185	24	8-Φ19	330
	5"	DN125	356	254	216	186	230	26	8-Φ22	600
	6"	DN150	394	279	241.5	216	260	26	8-Φ22	800
	8"	DN200	457	343	298.5	270	310	29	8-Φ22	1000
	10"	DN250	533	406	362	324	350	31	12-Φ25	1200
	12"	DN300	610	483	432	381	390	32	12-Φ25	1200

American Standard Ball Valve (Q41F-300LB) - Table of Main Connection Dimensions

Model	Nominal Diameter		Dimensions (mm)
Type	In	mm	L	D	D1	D2	H	b	Z-Φd	D0
Q41F-300LB	1/2"	DN15	140	95	66.5	35	72	15	4-Φ15	115
	3/4"	DN20	152	117	82.5	43	75	16	4-Φ19	130
	1"	DN25	165	124	89	51	85	18	4-Φ19	150
	1-1/4"	DN32	178	133	98.5	64	96	19	4-Φ19	190
	1-1/2"	DN40	190	156	114.5	73	110	21	4-Φ22	230
	2"	DN50	216	165	127	92	120	23	8-Φ19	240
	2-1/2"	DN65	241	190	149.5	105	150	26	8-Φ22	280
	3"	DN80	283	210	168	127	165	29	8-Φ22	310
	4"	DN100	305	254	200	157	190	32	8-Φ22	330
	5"	DN125	381	279	235	186	230	35	8-Φ22	600
	6"	DN150	403	318	270	216	270	37	12-Φ22	800
	8"	DN200	502	381	330	270	315	42	12-Φ25	1000
	10"	DN250	568	445	387.5	324	380	48	16-Φ29	1200

American Standard Ball Valve (Q41F-600LB) - Main Connection Dimensions Table

Model	Nominal Diameter		Dimensions (mm)
Type	In	mm	L	D	D1	D2	H	b	Z-Φd	D0
Q41F-600LB	1/2"	DN15	165	95	66.5	35	88	15	4-Φ15	115
	3/4"	DN20	190	118	82.5	43	98	16	4-Φ19	130
	1"	DN25	216	124	89	51	105	18	4-Φ19	150
	1-1/4"	DN32	229	133	98.5	64	120	19	4-Φ19	190
	1-1/2"	DN40	241	156	114.5	73	135	23	4-Φ22	230
	2"	DN50	292	165	127	92	155	26	8-Φ19	240
	2-1/2"	DN65	330	190	149.5	105	165	26	8-Φ22	280
	3"	DN80	356	210	168	127	175	32	8-Φ22	310
	4"	DN100	432	273	216	157	210	38	8-Φ25	330
	5"	DN125	508	330	266.5	186	260	45	8-Φ29	600
	6"	DN150	559	356	292	216	340	48	12-Φ29	800
	8"	DN200	660	419	349	270	400	56	12-Φ32	1000
	10"	DN250	787	508	432	324	440	64	16-Φ35	1200

List of Main Component Materials

Part Name	Material
Body	WCB, CF8, CF8M
Ball	F6.F304.F316
Stem	F6, F304, F316
Seal	PTFE
Handle	KTH350-10

Performance Specifications Table

Pressure (LB)	Shell Test (Mpa)	Seal (Water) (Mpa)	Back Seal (Water) (Mpa)	Seal (Gas) (Mpa)
150	3.1	2.2	2.2	0.5~0.7
300	7.8	5.6	5.6	0.5~0.7
600	15.3	11.2	11.2	0.5~0.7
